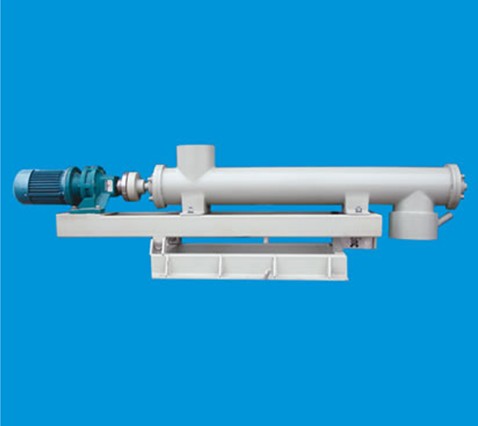

DCS-LX spiral batching scales has a unique weighing style, high-precision measurement, simple structure , good sealing, stable and reliable operation, using the overflow feeding spiral, which can play a lock expected, lock the wind, steady flow, multi - function with continuous feeding and quantitative feeding the two methods of work.
Function characters:
1. unique weighing style, high-precision measurement, simple structure , good sealing, stable and reliable operation
2. using the overflow feeding spiral, which can play a lock expected, lock the wind, steady flow, multi – function
3. With continuous feeding and quantitative feeding the two methods of work.
Technical parameter
|
dynamic cumulative error |
Better than1.0% |
|
dynamic zero and mechanical zero |
≤0.2%F、S |
|
weighing signal linearity |
Better than1.0% |
|
Work condition |
temperature20～＋75℃humidity≤85% |
|
Supply voltage |
380V+10%、50HZ |
|
Unit production |
0.5t/h～10t/h |
|
Model parameter |
spiral pipe diameter（mm） |
Geared motor（kw） |
transducer（kg） |
Production ability（m³/h） |
|
DCS-LX200 |
200 |
BWY18-59－2.2 |
LE500 |
5 |
|
DCS-LX200 |
200 |
BWY18-35－2.2 |
LE500 |
10 |
|
DCS-LX300 |
300 |
BWY18-43－2.2 |
LE500 |
20 |
|
DCS-LX300 |
300 |
BWY22-29－2.2 |
LE500 |
40 |
|
DCS-LX400 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
